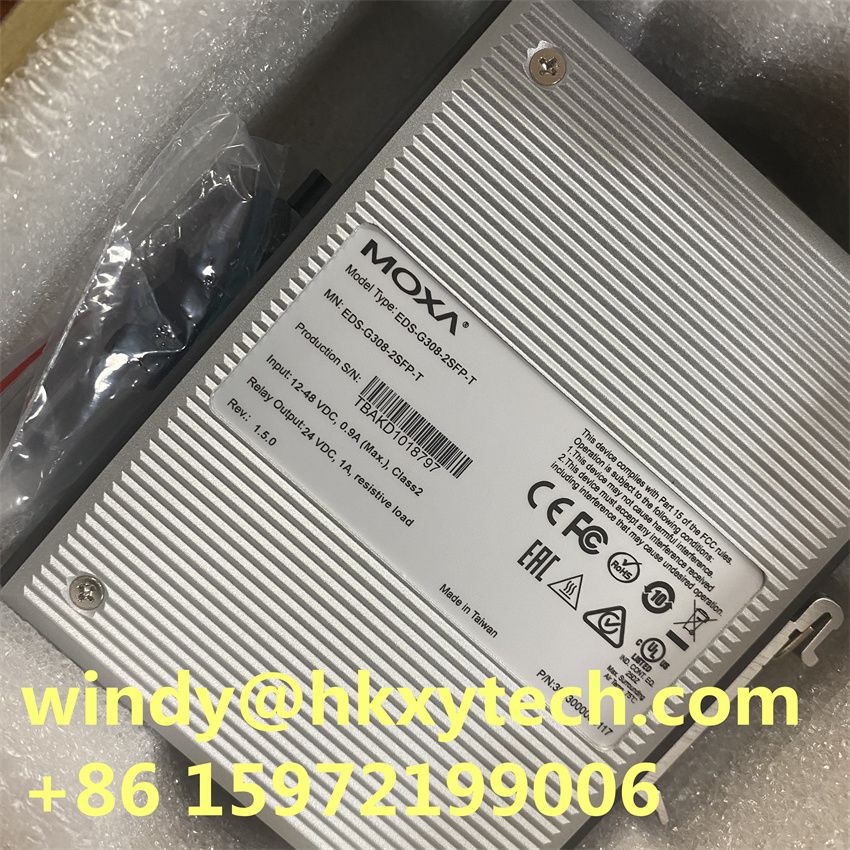

Moxa EDS-G308-2SFP-T Unmanaged Switches EDS-G308 Series With Good Price In Ready Stock


EDS-G308 Series

Unmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE Series Gigabit/Fast Ethernet modules, -40 to 75°C operating temperature


The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.

A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution box

Features and Benefits of EDS-G308-2SFP-T

  •  Fiber-optic options for extending distance and improving electrical noise immunity

  •  Redundant dual 12/24/48 VDC power inputs

  •  Supports 9.6 KB jumbo frames

  •  Relay output warning for power failure and port break alarm

  •  Broadcast storm protection

  •  -40 to 75°C operating temperature range (-T models)

Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 6
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseX
      IEEE 802.3az for Energy-Efficient Ethernet

DIP Switch Configuration
  • Ethernet Interface

    • Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm

Switch Properties
  • Jumbo Frame Size

    • 9.6 KB

  • MAC Table Size

    • 8 K

  • Packet Buffer Size

    • 4 Mbits

  • Processing Type

    • Store and Forward

Power Parameters
  • Connection

    • 1 removable 6-contact terminal block(s)

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Reverse Polarity Protection

    • Supported

  • Input Current

    • 0.31 A @ 24 VDC

Physical Characteristics of EDS-G308-2SFP-T
  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)

  • Weight

    • 880 g (1.94 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

Standards and Certifications
  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m
      IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF: 100 A/m

  • Hazardous Locations

    • ATEX, Class I Division 2

  • Maritime

    • DNV

  • Railway

    • EN 50121-4

  • Safety

    • UL 508, EN 62368-1

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6

MTBF
  • Time

    • 2,260,195 hrs

  • Standards

    • Telcordia (Bellcore), GB
