Schneider Electric STBACI1400K Image standard analog input kit STB - 4..20 mA - 8 I - 15 bits + sign With Good Price In Stock
Description of STBACI1400K
Square D (Schneider Electric) STBACI1400K Modicon Analog Input Kit
Schneider Electric Modicon® Analog Input Kit, Standard, Series: STB, 16 Inputs, 0 to 20/4 to 20 mA Signal, 22 ms Conversion Rate, +15 bit Resolution, +/-0.4 % Accuracy, 24 VDC, 90 mA, Screw/Spring Clamp Terminal, 25 to 70 deg C, 70 mm L x 128.3 mm W x 18.4 mm H Dimensions
Additional Description: SQD -STBACI1400K ANALOG C IN 8CH KIT CONNS,BASE

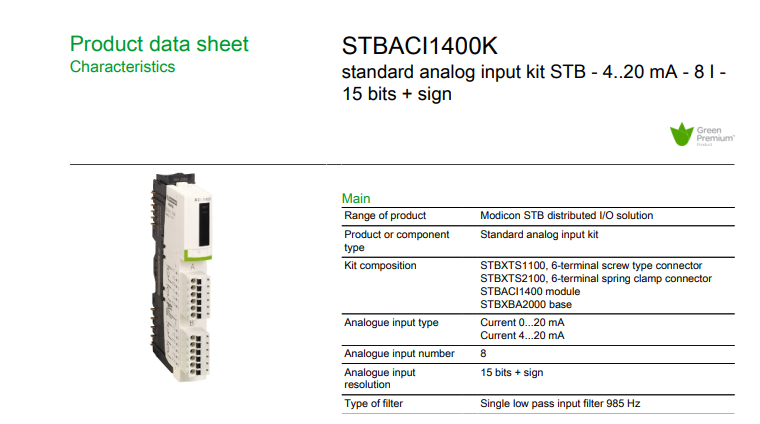

Catalog Description: standard analog input kit STB - 4..20 mA - 8 I - 15 bits + sign
| range of product | Modicon STB distributed I/O solution |
|---|---|
| product or component type | Standard analog input kit |
| kit composition | STBXTS1100, 6-terminal screw type connector STBXTS2100, 6-terminal spring clamp connector STBACI1400 module STBXBA2000 base |
| analogue input type | Current 0...20 mA Current 4...20 mA |
| analogue input number | 8 |
| analogue input resolution | 15 bits + sign |
| type of filter | Single low pass input filter 985 Hz |
| absolute maximum input | 25 mA/50 V DC |
|---|---|
| cold swapping | Yes |
| hot swapping fallback | Yes for standard NIMs |
| fallback status | State 0 basic NIMs User configurable standard NIMs |
| data format | EN 61131-2 IEC 61131-2 |
| update time | 22 ms |
| integral linearity | +/- 0.08 %FS |
| differential linearity | Monotonic |
| input impedance | <= 250 Ohm |
| maximum supply current for sensors | 100 mA per input channels |
| absolute accuracy error | +/- 0.4 % of full scale per °C |
| temperature drift | +/-0.005 %/°C |
| insulation between channels and logic bus | 1500 V for 1 minute |
| insulation between channels and sensor bus | 30 V |
| addressing requirement | 16 input words |
| product compatibility | Power distribution module STBPDT3100/3105 Mounting base STBXBA2000 |
| [Us] rated supply voltage | 24 V DC |
| supply | Power distribution module |
| current consumption | 90 mA at 5 V DC for logic bus |
| marking | CE |
| overvoltage category | II |
| status LED | 1 LED (green)module status (RDY) |
| depth | 70 mm |
| height | 18.4 mm |
| width | 128.3 mm |
| product certifications | FM Class 1 Division 2 CSA UL ATEX Cat 3G C-Tick |
|---|---|
| pollution degree | 2 conforming to IEC 60664-1 |
| operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for operation | - 13...158 °F |
| ambient air temperature for storage | -40…85 °C without derating |
| ambient air temperature for storage | -40...185 °F without derating |
| relative humidity | 95 % at 60 °C without condensation |
| vibration resistance | +/-0.35 mm at 10…58 Hz 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail |
| shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 147 g |
| Package 1 Height | 2.5 cm |
| Package 1 width | 8 cm |
| Package 1 Length | 13 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 4.542 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
